Setup a Docker Swarm cluster Part II - Hetzner Cloud & NFS

Build your own cheap but powerful self-hosted cluster and be free from any SaaS solutions by following this opinionated guide 🎉

This is the Part II of more global topic tutorial. Back to first part for intro.

Requirements 🛑

Before continue I presume you have :

• Hetzner cloud account ready
• Installed hcloud cli
• Have a local account SSH key

Initiate the project by following this simple steps :

1. Create the project through the UI (I will use swarmrocks as project’s name here)

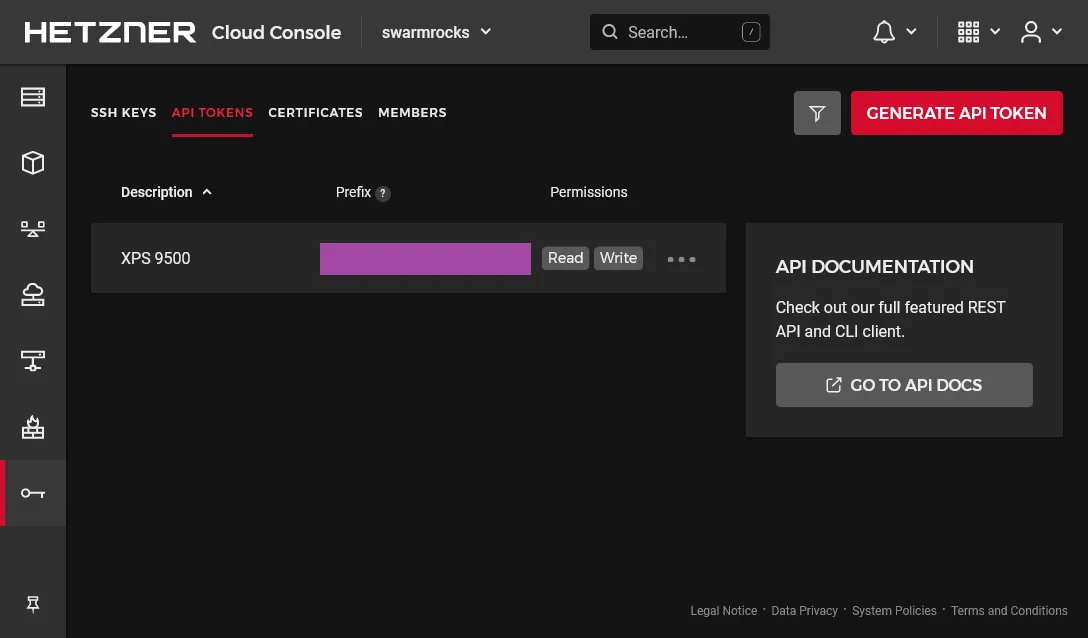

2. Navigate to security > API tokens
3. Generate new API key with Read Write permissions and copy the generated token

Then go to the terminal and prepare the new context.

hcloud context create swarmrocks # set the copied token at prompt
hcloud context list # check that your new project is active

# set your ssh public key to the project, mine is .ssh/id_ed25519.pub
hcloud ssh-key create --name swarm --public-key-from-file .ssh/id_ed25519.pub

Note as we don’t need to return to the Hetzner UI anymore, all the rest is pure CLI. We’re ready to set up the cluster architecture presented in the first part !

Create the cloud servers and networks ☁️

# create private network
hcloud network create --name network-01 --ip-range 10.0.0.0/16

# create a subnet for the network
hcloud network add-subnet network-01 --type server --network-zone eu-central --ip-range 10.0.0.0/24

# create manager server
hcloud server create --name manager-01 --ssh-key swarm --image ubuntu-20.04 --type cx21 --location nbg1 --network network-01

# create worker server
hcloud server create --name worker-01 --ssh-key swarm --image ubuntu-20.04 --type cx21 --location nbg1 --network network-01

# create runner server
hcloud server create --name runner-01 --ssh-key swarm --image ubuntu-20.04 --type cpx11 --location nbg1 --network network-01

# create data server
hcloud server create --name data-01 --ssh-key swarm --image ubuntu-20.04 --type cx21 --location nbg1 --network network-01

# create the volume that will be used by gluster and automount it to the data server (fstab will be already setted)
hcloud volume create --name volume-01 --size 20 --server data-01 --automount --format ext4

Prepare the servers 🛠️

It’s time to do the classic minimal boring viable security setup for each server. Use hcloud server ssh xxxxxx-01 for ssh connect and apply the same following commands for each nodes.

# ensure last upgrades
apt update && apt upgrade -y && reboot

# configure your locales and timezone
dpkg-reconfigure locales
dpkg-reconfigure tzdata

# create your default non root user (swarm in this sample)
adduser swarm # enter any strong password at prompt

# set the user to sudoer group and sync the same ssh root key
usermod -aG sudo swarm
rsync --archive --chown=swarm:swarm ~/.ssh /home/swarm

# setting vim for personal taste and remove sudo password
update-alternatives --config editor
visudo # replace %sudo... line by %sudo ALL=(ALL:ALL) NOPASSWD:ALL

# finally change default ssh port by anything else
vim /etc/ssh/sshd_config # Port 2222
service ssh reload

Finally, test your new swarm user by using hcloud server ssh --user swarm --port 2222 xxxxxx-01 for each server and be sure that the user can do commands as sudo before continue.

Then edit /etc/hosts file for each server accordingly for internal DNS :

1
10.0.0.3 worker-01 sw-worker-01
2
10.0.0.4 runner-01 sw-runner-01
3
10.0.0.5 data-01 sw-data-01

1
10.0.0.2 manager-01
2
10.0.0.5 data-01

1
10.0.0.2 manager-01
2
10.0.0.5 data-01

1
10.0.0.2 manager-01

Setup DNS and SSH config 🌍

Now use hcloud server ip manager-01 to get the unique frontal IP address of the cluster that will be used for any entry point, including SSH. Then edit the DNS of your domain and apply this IP to a particular subdomain, as well as a wildcard subdomain. I will use sw.dockerswarm.rocks as sample with 123.123.123.123 as public IP. Choose between two solutions :

1
sw      3600    IN A        123.123.123.123
2
*       43200   IN CNAME    sw

1
sw      3600    IN A        123.123.123.123
2
*.sw    43200   IN CNAME    sw

It’s now time to finalize your local SSH config for optimal access. Go to ~/.ssh/config and add following hosts (change it accordingly to your own setup) :

1
Host sw
2
    User swarm
3
    Port 2222
4
    HostName sw.dockerswarm.rocks
5

6
Host sw-data-01
7
    User swarm
8
    HostName sw-data-01
9
    ProxyCommand ssh sw -W %h:2222
10

11
Host sw-runner-01
12
    User swarm
13
    HostName sw-runner-01
14
    ProxyCommand ssh sw -W %h:2222
15

16
Host sw-worker-01
17
    User swarm
18
    HostName sw-worker-01
19
    ProxyCommand ssh sw -W %h:2222

And that’s it ! You should now quickly ssh to these servers easily with a single endpoint by ssh sw, ssh sw-worker-01, ssh sw-runner-01, ssh sw-data-01, which will be far more practical.

The firewall 🧱

Now it’s time to finish this preparation section by putting some security. You should never let any cluster without properly configured firewall. It’s generally preferable to use the cloud provider firewall instead of standard ufw because more easy to manage, no risk of being stupidly blocked, and settled once and for all.

You need at least 2 firewalls :

1. One external for allowing only SSH and web standard ports. You’ll need a full set of rules, and it will be only enabled for manager-01. The main SSH port will be IP whitelisted to your public IP only.
2. The second firewall is to block all ANY external incoming requests, even for SSH as we don’t need it anymore thanks to above SSH proxy.

First create the next JSON file somewhere locally in your machine :

1
[
2
    {
3
        "direction": "in",
4
        "port": "22",
5
        "protocol": "tcp",
6
        "source_ips": [
7
            "0.0.0.0/0",
8
            "::/0"
9
        ]
10
    },
11
    {
12
        "direction": "in",
13
        "port": "80",
14
        "protocol": "tcp",
15
        "source_ips": [
16
            "0.0.0.0/0",
17
            "::/0"
18
        ]
19
    },
20
    {
21
        "direction": "in",
22
        "port": "443",
23
        "protocol": "tcp",
24
        "source_ips": [
25
            "0.0.0.0/0",
26
            "::/0"
27
        ]
28
    },
29
    {
30
        "direction": "in",
31
        "port": "2222",
32
        "protocol": "tcp",
33
        "source_ips": [
34
            "xx.xx.xx.xx/32"
35
        ]
36
    }
37
]

It corresponds to the incoming allowed port for manager-01 host.

Create the 2 firewalls as next :

# internal firewall to protect internal server from all external access
hcloud firewall create --name firewall-internal
hcloud firewall apply-to-resource firewall-internal --type server --server worker-01
hcloud firewall apply-to-resource firewall-internal --type server --server runner-01
hcloud firewall apply-to-resource firewall-internal --type server --server data-01

# external firewall to protect manager-01 with only required ports
hcloud firewall create --name firewall-external --rules-file firewall-rules.json
hcloud firewall apply-to-resource firewall-external --type server --server manager-01

You should have now good protection against any unintended external access with only few required ports to your manager-01 server, aka :

Manage all nodes 🧑‍🍳

Maintain all nodes up2date one by one can be really time-consuming. Let’s try SaltStack for this. Salt uses an agent system (called minion) connected to a master for remote management. This is notably more scalable than Ansible which use simple SSH connection for each node. Use following commands on manager-01.

curl -o bootstrap-salt.sh -L https://bootstrap.saltproject.io
sudo sh bootstrap-salt.sh -M

Then same without -M commutator an all other servers :

curl -o bootstrap-salt.sh -L https://bootstrap.saltproject.io
sudo sh bootstrap-salt.sh

Edit minion configuration on all hosts as following in order to connect agent to the master host :

1
#...
2
master: manager-01
3
#...

Then restart all with sudo systemctl restart salt-minion.

A cache key will be automatically generated and all you have to do is accept all clients on manager host :

sudo salt-key -L # list all currently unaccepted client keys
sudo salt-key -A # accept all clients

And that’s it ! You can manage efficiently all nodes in one single time via SSH on master node. Here some classic exemples :

sudo salt '*' test.version # show all minion client version
sudo salt '*' pkg.upgrade # classic apt upgrade on all nodes
sudo salt '*' system.reboot # reboot all nodes
sudo salt '*' kernelpkg.needs_reboot # show reboot need status for all nodes
sudo salt '*' kernelpkg.upgrade reboot=True # upgrade kernel and reboot for applying it

Network file system 📄

Before go further away, we’ll quickly need of proper unique shared storage location for all managers and workers. It’s mandatory in order to keep same state when your app containers are automatically rearranged by Swarm manager across multiple workers for convergence purpose.

We’ll use GlusterFS for that. You can of course use a simple NFS bind mount. But GlusterFS make more sense as it allows easy replication for HA. You will not regret it when you’ll need a data-02. We’ll not cover GlusterFS replication here, just a unique master replica.

Install GlusterFS 🐜

It’s 2 steps :

• Installing the file system server on dedicated volume mounted on data-01
• Mounting the above volume on all clients where docker will be installed

sudo add-apt-repository -y ppa:gluster/glusterfs-10

sudo apt install -y glusterfs-server
sudo systemctl enable glusterd.service
sudo systemctl start glusterd.service

# get the path of external mounted disk volume
df -h # it should be like /mnt/HC_Volume_xxxxxxxx

# create the volume
sudo gluster volume create volume-01 data-01:/mnt/HC_Volume_xxxxxxxx/gluster-storage
sudo gluster volume start volume-01

# ensure volume is present with this command
sudo gluster volume status

# next line for testing purpose
sudo touch /mnt/HC_Volume_xxxxxxxx/gluster-storage/test.txt

sudo add-apt-repository -y ppa:gluster/glusterfs-10

sudo apt install -y glusterfs-client

# I will choose this path as main bind mount
sudo mkdir /mnt/storage-pool

# append mount to /etc/fstab for persistent mount
echo "data-01:/volume-01 /mnt/storage-pool glusterfs defaults,_netdev,x-systemd.automount 0 0" | sudo tee -a /etc/fstab

# test fstab with next command
sudo mount -a

# you should see test.txt
ls /mnt/storage-pool/

1st check ✅

We’ve done all the boring nevertheless essential stuff of this tutorial by preparing the physical layer + OS part + cloud native NFS.

Go to the next part for the serious work !
